DM3S 22-Channel Digital Mixer

DM3S 22-Channel Digital Mixer

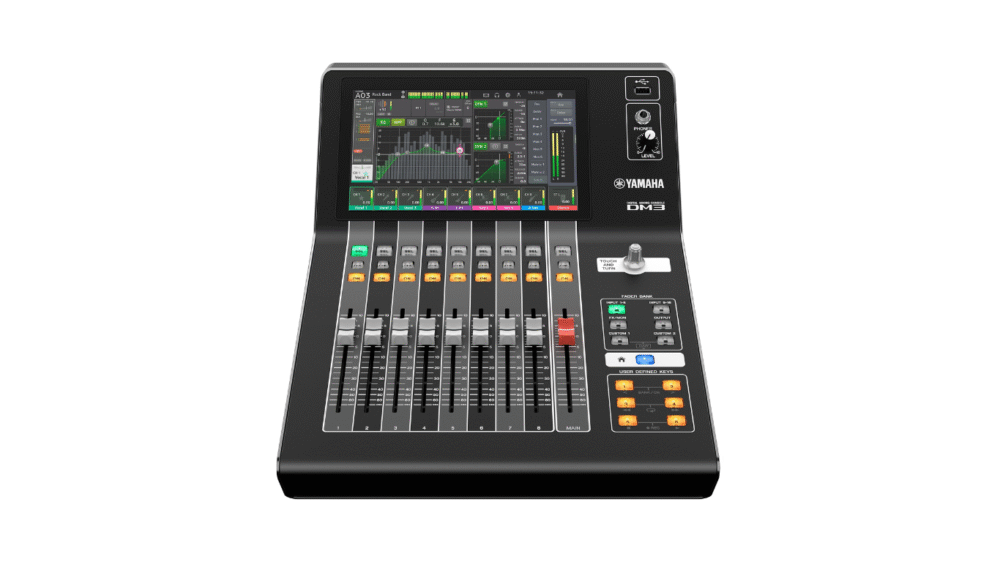

The Yamaha DM3S is a compact 22-channel digital mixer designed for professional live sound, recording, and streaming applications. Featuring a 9-inch multi-touch screen, 8+1 motorized faders, and high-resolution 96kHz audio processing, it offers intuitive control and exceptional sound quality in a portable form factor.

• Compact and Portable: Weighs only 14.3 lbs (6.5 kg), making it ideal for mobile setups and tight spaces.
• Intuitive Interface: 9-inch multi-touch screen with a single "Touch and Turn" rotary encoder for streamlined operation.
• Versatile Connectivity: 16 mic/line inputs (12 XLR + 4 XLR/TRS combo), 8 XLR outputs, and 18x18 USB audio interface for seamless integration with DAWs.
Input Channels: 16 mono + 1 stereo + 2 FX return.
Mix Buses: 6 mix buses, 2 FX buses, 2 matrix buses, and 1 stereo bus.
Sampling Rate: Supports 48kHz and 96kHz for high-resolution audio.
Built-in Effects: 18 high-grade effects including REV HD and REV R3, with GEQ on Mix 1-6 and Stereo channels.
Recording & Playback: 18-track recording/playback via USB to PC/Mac; 2-track recording/playback via USB storage device.
Latency: Less than 1.3 ms from analog input to main output at 96kHz.
Dimensions (W x H x D): 12.6" x 5.5" x 17.9" (320 x 140 x 455 mm).
Weight: 14.3 lbs (6.5 kg).
