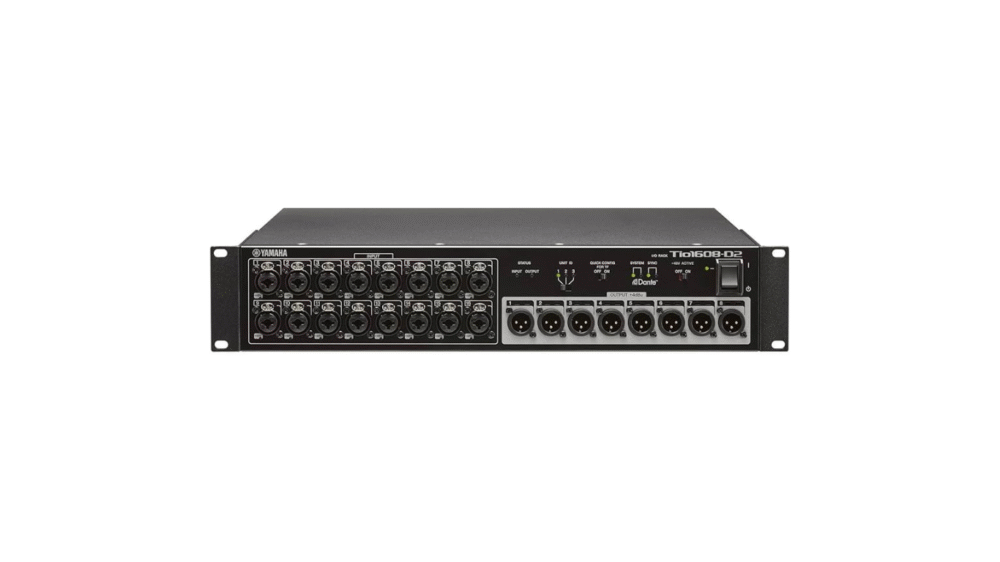

TIO1608-D2 Dante Stage Box

• Dante Connectivity: Transfers 16 inputs and 8 outputs over a single network cable
• Remote-Controlled Preamps: High-quality Yamaha head amps controllable from TF, QL, or CL consoles
• Rackmountable Design: 3U form factor with rugged build for stage and install use

• Inputs: 16 x mic/line combo (XLR/TRS)
• Outputs: 8 x XLR
• Network: 2 x RJ45 (Dante Primary/Secondary for redundant or daisy-chain mode)
• Sampling Rate: 48kHz
• Gain Range: -6dB to +66dB (remote-controlled)
• Dimensions: 480mm x 132mm x 364mm (W x H x D)
• Weight: 6.5 kg (14.3 lbs)
• Use Case: Ideal for expanding stage I/O in Yamaha TF, QL, or CL systems
