EVOX 12

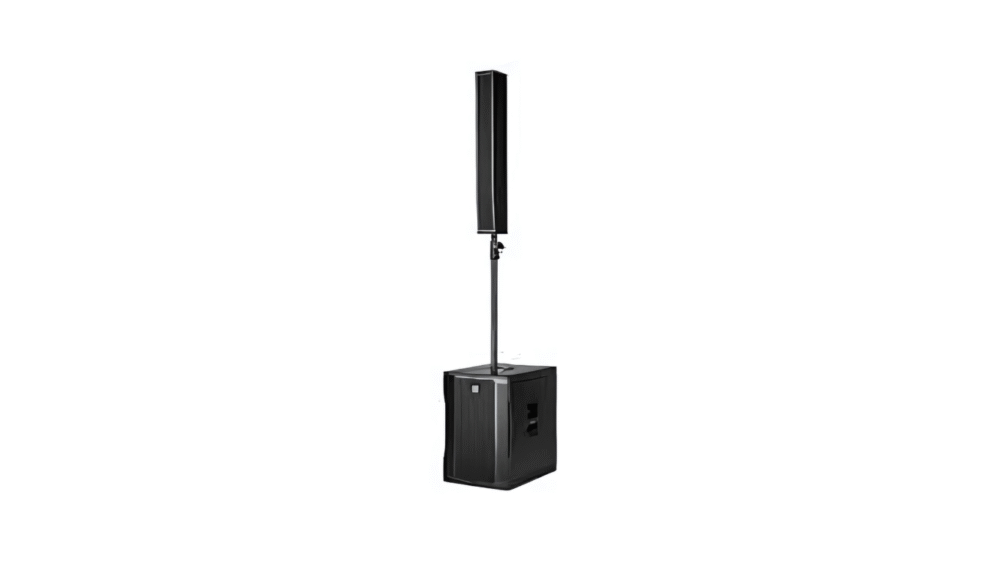

The RCF EVOX 12 is a high-powered, portable line array system designed for live sound reinforcement, DJs, and presentations. Featuring a 15" subwoofer and eight 4" neodymium full-range drivers, it delivers a wide 90° x 30° coverage with deep, punchy bass and clear mids and highs.

• Powerful Amplification: 1400W peak (700W RMS) Class-D amplifier provides robust performance for various applications
• Advanced DSP Processing: Includes FiRPHASE technology for transparent sound and perfect imaging
• Portable Design: Integrated wheels and extendable handle ensure easy transportation and quick setup

Frequency Response: 40 Hz – 20,000 Hz
Maximum SPL: 130 dB
Coverage Pattern: 90° horizontal x 30° vertical
Transducers: LF: 1 × 15" woofer with 3.0" voice coil; HF: 8 × 4" neodymium full-range drivers
Input/Output Connectors: XLR, Jack (input); XLR (output)
Controls: Volume, EQ
Enclosure Material: Baltic birch plywood
Dimensions (H × W × D): 86.6" × 16.1" × 22.0" (2200 × 410 × 560 mm); Weight: 80.25 lbs (36.4 kg)
